Remington #2 Rolling Block

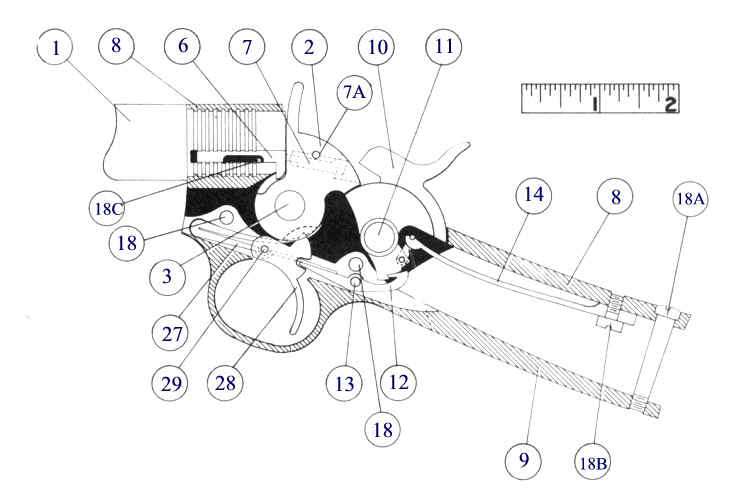

The illustration shown below was taken from Frank de Haas's Single Shot Rifle book with the part numbers changed to reflect factory part numbers. This is important as about all obsolete parts suppliers use ONLY factory or closely associated numbers where ever possible so everyone is on the same page.
Note, for some of the older firearms, many
over 100 years old, the factories never used what we now know as assembly
drawings, but just views of many of the component parts & possibly randomly
placed
|
The parts listed below are for your
identification purposes only. The author of this website DOES NOT have any parts. |
The Above illustration taken from Frank de Haas Single Shot Rifles & Actions book but the numbers changed to match factory part numbers
| 1 | Barrel | 11 | Hammer Pin |
| 2 | Breech Block | 12 | Sear |
| 3 | Breech Block Pin | 13 | Sear Pin |
| 4 | Sideplate Button | 14 | Mainspring |
| 5 | Butt Plate Screw | 18 | Guard Screws |
| 6 | Extractor | 18A | Tang Screw |
| 7 | Firing Pin | 18B | Mainspring Screw |
| 7A | Firing Pin Retainer Pin | 18C | Extractor Screw |
| 8 | Frame | 28 | Trigger |
| 9 | Guard | 29 | Trigger Pin |
| 10 | Hammer | . | . |
