Gunsmithing the Savage Model 34

History ; For a look at the history of these rifles CLICK HERE. The Stevens model 325 was the forerunner of the Savage model 340, so any gunsmithing that applies to one also applies to the other. These models were made in 30-30 Winchester, 22 Hornet, 222 Remington, 223 Remington and 225 Winchester, with the 30-30 being the most popular, followed by the 222 Remington. The reason the 223s popularity was low is because this model was discontinued early enough that production of the 223 was limited at that time. With the 225 being on the bottom numbers of the production list.

Gunsmithing Situations/Problems ; The most common problem for the early models that used a split retainer for the front of the gas shield is that these get bent or become loose and may break one side off. This problem was eliminated when they later went to both clips being a wrap around style. However the later rear wrap around clip can not be used to replace the older split style because of the older ejector system where the split rings were needed.

Another situation is that there is not much you can do for trigger pull adjustment as it is made NON-ADJUSTABLE. But trigger pull on these guns usually is acceptable to most hunters as this is not really a expensive target rifle. A good gunsmith can improve it, but don't expect miracles.

One problem with the wrap around extractor is since it has to be spread quite a bit to snap around the bolt head/locking lug, the metal may not return to it's original bend and tension may not be as tight as you would like. There is a fine line in the heat treating process between strong enough to be a spring and yet so hard that it breaks when installing it. There seems to not be much that you can do for this. But with the lower pressure generated by these milder calibers this is not usually a problem.

The biggest problem seems to be a minor situation, but contributes to a non ejection problem if someone has had the barreled receiver out of the stock and reassembled it wrong. This is that when the stock is removed, the ejector, pin along with the spring can fall out and the person does not realize this. Or if the person who re-assembles it does not understand the pivoting ejector on the 30-30 or the early 222 Remingtons whereby the ejector spring needs to be positioned right (to applying tension) when reassembled.

The 30-30, 22 Hornet and early 222 ejector has a slot in it, the pivot pin needs be inserted so the spring goes over this pin when assembled with the flat section inward. This spring needs to be situated so the short tail of the spring, one against the ejector is pointing forward, the other (the longer tail) will ultimately be bearing on the slot in the receiver. If you have problems aligning the pivot pin, ejector AND the spring, apply some Vaseline in the slot to temporarily hold the ejector, then insert the pin in just far enough to enter the top part of the ejector, leaving the center slot open for the spring. Now with needle nose pliers slide the spring in (coiled loop outward).

It is best to, when inserting the barreled action back into the stock is to at least have the bolt open OR out of the action, which allows the ejector to be positioned without spring tension on it. Using this method this allows the pivoting ejector to fall inward with no spring tension on it. The rear tail of the spring needs to be so it lays in the receiver slot and not become bound up or bent, as the barreled receiver is inserted back into the stock.

Another situation can be that the magazines may become badly bent enough on the sides to restrict upfeed of the cartridge. These magazines are made of thin stamped out then bent unheat-treated sheet metal that have the feed lips formed on the top of the magazines. If you sit on them, step on them, or slam the vehicle door on one, sometimes this changes how the cartridge feeds into the chamber. The 30-30 magazine seems to be a lot more forgiving than the 222 or 223 magazines.

One thing to check on using any removable magazine firearm, is whether the retainer latch is engaging the matching notch in the magazine. Never file the latch, but fit the magazine. However, first be sure that the magazine goes as far UP into the receiver as it needs to feed the ammo. Possibly if when fitting a new magazine, you may have to file a bit off the upper lip edges. Not a lot but just enough to ensure it goes all the way up. Then and only then, look at the latch engagement, which needs to be just loose enough for the latch to not drag and to easily release the magazine.

In the photo below on left, you will see a 30-30 magazine disassembled and in proper orientation. The spring's tails go forward with the short tail on top (fitting inside the follower's downward bended ends). This follower has a slight slope on the rear to facilitate feeding because of the rimmed case. To disassemble this magazine, use an object, (like a lead pencil with eraser down against the rear of the follower), push it down, forcing this follower down at the rear, which will move the front of the follower down and rearward enough to allow the follower's front wider part to be released from the follower stop detents on the magazine box. This now allows the follower and spring to be removed straight upwards. Reassembly will be reversed except the follower rear lip needs to be inserted at just in front of the feed lips and you can usually push it rearward and down enough with your fingers to allow the front to drop behind and under the follower stops. This 30-30 magazine box has an embossed upside down Ell at the rear, to accommodate the follower's rear protrusions. This locks the follower rearward while allowing room in the box for the cartridge's rim. This also allows room in the box for the cartridge's rim while holding the rim rearward until it feeds up on top to be inline to feed into the chamber.

The right hand photo below is the 223 Rem. and would also be representative of the 222 Rem. as the box is the same with the exception of the shoulder location. The Procedure to disassemble and reassemble is basically the same as for the 30-30. Here you will also notice the follower of the 222/223 has a slight step up on the front. This is to facilitate feeding.

After I purchased the magazine tooling from Savage in 1990, I experienced some feeding problems in the 222 and 223, and in talking to a ex Savage Service Dept employee, he told me what he used to solve the problem, so for a few years, I made this bend by hand. After I sold my parts business to my son, he did extended the experimenting, coming up with the best step height, then made a special forming fixture to make consistent bends as seen in the RH photo below.

One thing to remember that these 30-30 magazines were designed for 150/170 grain round/flat nose ammo designed for lever action firearms, (all that was available at the time these guns were made). If you reload and try to use lighter/shorter or pointed bullets, the rear rim feed lips of the magazine may not position the ammo's bullet nose to properly function out of the magazine as a repeater. And this chamber/barrel has no infeed cone to allow for any misalignment of ammo moving from the magazine into the chamber. If this is your problem, then on the lighter bullets, moving them out as far as possible, or at least near the factory loaded length may help.

While on magazines, the 340 E series has a flat floorplate and for the 30-30 and 225 uses a 1/2 round shaped spring that straddles the magazine and has short ears on the spring ends that engage notches in the upper section of the magazine that "eject' the magazine as compared to finger grooves in the floorplate where you can grasp the magazine. If this ejector spring gets bent and not engaging the magazine notches, it becomes hard to remove the magazine without opening the bolt then pushing the magazine out from above.

Feed systems are critical in firearm functioning, therefore, any rebarreling with any hope of cartridge feeding, care has to be taken to duplicate as near as the original round as possible. For the 30-30, this leaves lots of calibers out, but I have made slight magazine alterations to allow feeding of the 25-35 (essentially a necked down 30-30). The 7 X 30 Waters may be another, as the pressure for this caliber was designed to approximate the 30-30's. And it was also made off a 30-30 case, moving the shoulder forward a bit and used a lighter flat nose bullet still to the overall length of the 30-30 so it would function in a Winchester model 94. Therefore it should feed through this magazine also.

The factory did make it in 225 Win. with a longer body so it functions quite well out of the factory 30-30 magazine, but the case rim diameter is just enough oversize to the 30-30 that the ammo and 30-30 bolt face are not compatible.

Theoretically a 38-55 may function out of the magazine, but I have not tried it for feeding.

Also be sure that both the front and rear magazine guides are tight AND aligned true with the receiver.

Bolt Construction ; The firing pin was unique in that the rear was threaded to adjust the protrusion and locked into place by a retainer key “C” clip that slides over the square rear section. This is captivated inside the rear cocking protrusion of the bolt body when the striker unit was assembled into the bolt body. Misfires can happen if someone tore the gun apart and lost this firing pin retainer key #6. The rear section of the firing pin is threaded with the front of the threads being made a square. The firing pin length can be adjusted by threading it into the cocking piece #34 for proper protrusion (about .060") out of the bolt face when the bolt is assembled and the firing pin is in the firing notch position of the cocking cam. This dimension is about the same as the diameter of the firing pin tip. If this retainer key not reinstalled, or not in the proper location there may not be enough protrusion to ignite the primer when you pull the trigger.

Bolt Disassembly ; To remove or adjust the firing pin length, you will need to disassemble the bolt handle from the front body. There is one 1/8" pin crosswise about 1/2" in front of the bolt handle in the bolt body. If you look closely at both sides of this pin, you will see that one side is pretty well contoured to the configuration of the round bolt body. The other side is usually recessed slightly and has a flat end. This flat end is the side you want to use a pin punch, slightly smaller than the pin diameter. You will notice a radiused groove in the bolt body that this pin goes through to hold both parts together. It will only go on one way. Drive this pin out. Now the front bolt body can be removed from the rear bolt handle assembly.

Now before you remove the firing pin, you may want to take a measurement of how much of the firing pin protrudes in the fired position (cocking piece rotated so the firing pin is all the way forward). Just be sure that you remember where the cocking piece was located in the rear bolt body behind the bolt handle so you can replace it in the same location. Now take a measurement (as seen in the photo above) and make a note of it. Now with a sharp instrument (ice pick) slide the 1/2 round key out of the slot as shown by the red arrow in the photo below. In this position, you can now see the square end of the firing pin. Find a block of wood with a hole drilled in it enough to the thicker part of the firing pin tip at the shoulder of the spring.

The firing pin will be under the tension of the spring, so you need to unscrew it from the cocking piece in a controlled fashion, otherwise the spring and firing pin will be launched across the room. Place the unit on your wooden block and push down relieving the spring tension off the cocking piece. Rotate this cocking piece back to the fire position (the position that allows the firing pin to move farthest forward and with the least amount of tension. With most of the spring tension off the firing pin and can now unscrew it from the cocking piece. Clean everything, reassemble, possibly with a new spring if needed.

Bolt Reassembly ; You now can reassemble, and if the gun had no problem firing before, use the measurement you just took. Slide the mainspring onto the rear of the firing pin, then insert both into the rear bolt body. With the firing pin tip section in a vise or against a piece of wood as explained above, compress the mainspring enough to start threading on the cocking piece onto the rear of the firing pin. By holding onto the bolt body you can now by using pliers rotate/thread the fining pin into the cocking piece farther. Check the firing pin protrusion occasionally by inserting this whole unit into the bolt locking unit section. If it needs to be adjusted, move (rotate) it,(the firing pin) in or out and try for the protrusion measurement again.

With the cocking piece in the firing position, and the bolt's rear section slid into the front part of the bolt, the firing pin should look similar to the photo below. This firing pin tip should protrude about .060 which is again about the diameter of the actual firing pin tip. Measure it with a depth caliper, and if need be, screw the firing pin either in or out, correlating the square notch at the rear so the square flats will allow slot of the 1/2 round key to slide over the square firing pin rear end securing it once the cocking piece has moved back inside the rear bolt handle sleeve.

Reinstall the bolt body retainer pin. Now before you can reinstall it into the receiver, you may need to retract the cocking piece and now firing pin unit so the cocking piece is aligned with the longest notch (full cock notch) in the bolt handle sleeve.

One other thing you need to be sure of is that on this reassembly that you align the cocking piece properly in the bolt body unit. On the rear of the bolt body there is a recess on the bottom and RH side, with a tapered cam between the two (forward and rear notches). Under normal operation, when the bolt is inserted into the receiver, the cocking piece tab enters into a corresponding notch in the bottom of the receiver, and when pushed forward/rotated into the locked/downward position, the trigger/sear engages this cocking piece holding it rearward under spring tension of the firing pin spring inside the bolt body.

When reassembling, IF you do not get it (the cocking piece) in the farthest rearward notch, you will not be able to close the bolt because this cocking piece tab will be in the fired position (now rotated to the right and in the farthest forward notch), where the bolt's forward motion will be stopped by the out of position cocking piece hitting the rear RH receiver, but hidden by the safety lever. Kind of like the bolt is too long for the gun.

This gun is designed to cock on the opening of the bolt. The normal method of positioning the cocking piece as mentioned above, is after assembly to clamp the cocking in a vise and pull the bolt body forward (under the firing pin spring's tension), rotate the bolt body so that the cocking piece tab is in the most rearward notch. There is a slight protrusion on this notch that retains it under normal operations.

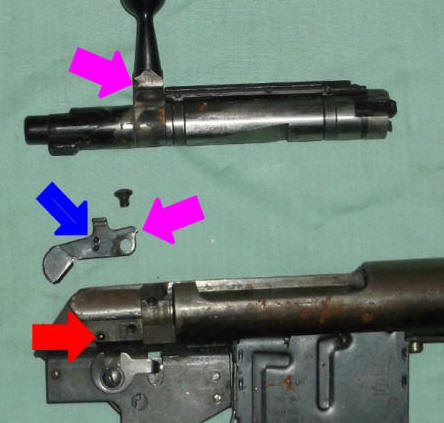

Safety Related Issues ; The safety lever was a pivoting sheet metal stamping situated on the RH rear side of the receiver that was FIRE when the lever was UP, and SAFE when it was rotated down. With this lever in the down position, it also functions as a bolt lock in the older models. There was a small lug on the bottom forward part of the safety lever (lower purple arrow in the photo below) that engaged into a small hole at the rear of the bolt handle area that locked the bolt (upper purple arrow) when the safety was in the “SAFE” position. Many of the older versions that had the safety (bolt lock) provision would usually break out the VERY thin section at the bolt lock hole on the base of the bolt handle, making for a non-locking bolt. In the photo below you will notice that this is one of the broken hole, showing the metal broken out of the bolt handle at the indication of the upper purple arrow.

This is of little safety consequences as the factory discontinued this feature to allow unloading of the rifle with the safety on later anyway. However on these, your bolt handle could get bumped, allowing the bolt to open at an inopportune time.

It can be welded and reshaped, BUT will usually not help for long, as the average welder does not have the ability or tools to make a real satisfactory weld. Along with the fact that any rework will have to be done by hand and usually with a Dremel tool and dental burr. And the weld will be softer than the heat treated handle, along with this area is rather THIN and fragile to start with. Kind of like a engineering afterthought.

Also the safety could become loose or inoperative if the detent ball (red arrow) became rusted, or the spring behind it also became rusted into the hole. Or even the ball could have became unstaked in it's hole and lost. These parts are still available from https://www.gunpartscorp.com/ as of 12-10-13.

If the ball is still in place, it should be retained inside the hole with about 1/3 of the ball showing which, when assembled, it puts tension on one of the two holes in the underside of the safety lever (blue arrow). If you are careful the ball could be simply placed in the hole and the lever screwed down tightly, just be careful next time it is disassembled or the ball will go flying.

It should be obvious that the safety retaining screw needs to be tight against it's shoulder between the screw head and the threads.

Trigger Replacement Parts ; The trigger assemblies are pretty much the same for the 325. 340 and the 342s, but spare parts availability has dried up considerably. About the only place to locate any of these parts would be https://www.gunpartscorp.com/ or on https://www.gunbroker.com/ . Gunparts Corp bought out the final spare parts inventory when Savage closed that line out, BUT they do not have ALL the parts. Gunbroker has a section in their listings for "Gun Parts", here you may from time to time find used parts for these models listed, even complete parts except the receiver. But be prepared to bid high on these parts kits.

Trigger Adjustments ? ; The trigger assembly is just that. It consists of a stamped out sheet metal U shaped housing that is screwed onto the bottom of the receiver by 2 screws. The front screw of this attachment also secures the rear magazine latch. Then all the internal parts, trigger, sear, sear cam, magazine stop along the sear and trigger springs are secured together in this unit by rivets, after it is screwed onto the receiver. The spring's function are a bit unorthodox.

Since it is an assembled unit, if you need to do any work on the trigger unit, some of the rivets need to be deheaded to facilitate removal. Any gunsmithing on these trigger units lowering the pull weight will have to be minimal, as the trigger sear notch engagement CANNOT be lessened much without creating a safety issue, because the safety lock (which was not sold separately permanently AND riveted to the trigger housing) has sloppy clearance into the top of the trigger slot corresponding to the trigger sear engagement. In other words if you decrease the trigger/sear engagement by lessening the trigger notch, you run a very serious chance the safety will not lock the trigger when the safety is place ON. I am not saying improvements can not be made, BUT you had better be DAMNED sure of what you are doing and the CONSEQUENCES involved. Probably your best bet is to simply stone the sear/trigger engagement notches and live with the creep.

However if I were to try to adjust these, my thoughts would be to make a simple U shaped sheet-metal clip that would slide over the lower rear of the trigger housing, then drill and tap on one rear side (the trigger is split in the center for the spring) thread this for a SMALL machine screw so it would bear on one side of the trigger, giving you an adjustment for engagement. JB Weld this clip in place. This would allow you to play with adjusting the screw AND trigger adjustment, while not having the hassle of unriveting and reassembling of the trigger unit and you would not ruin anything. BUT be careful of the safety lock issue as that is the limiting factor.

Stocks ; From what I have observed, stocks will interchange between the 222, 223, 225 and the 30-30 calibers. Not sure about the 22 Hornet, but I suspect it will also fit in this category and will have to research this one farther. This pertains to the Stevens 325, Savage 340, 340A, 340B, 340 C, 340 D and 340V, which all have a finger groove recess in the bottom of the stock facilitating extraction the magazine. The 340E uses a flat floorplate/trigger guard and uses a spring type magazine ejector spring, so it would be different.

However the 340E stock could be modified to fit the finger grooved earlier trigger guards.

The reason the interchangeability is that on these firearms is the magazines all use the same forward position of the front magazine guide, facilitating feeding into the chamber. The space behind the smaller caliber magazines is simply covered up by the rear of the floorplate/trigger guard.

Unusual Problems ; I encountered a situation on the 340 below that was recovered from a Eskimo's fishing boat bilge. After re-barreling it and firing a hundred rounds or so thru it, the bolt later became hard to close. Headspace was right, and it would do this even on an empty chamber. I checked about everything you would normally look at, like the bolt retracting/opening cam relationship of the receiver to the bolt root cam as compared to the locking lug starting into the receiver recess. The bolt was not hitting my scope mount screws nor the rear of the barrel. Finally I traced it down to a worn gas shield latch. This is referenced as #1 on the exploded views on the 325/340 article. It seems that this spring loaded pivoting lever in the front of the gas shield gets depressed as the bolt head slides into the rear opening of the receiver at the locking lug area. In doing so, this latch is pressed down by the inside of the receiver UNLOCKING the shield. This particular latch apparently was rusted/worn enough so that it was not being pressed down enough to unlock the gas shield. If you would hit the bolt handle HARD with the palm of your hand, the jar seemed to force things enough for the bolt to be closed.

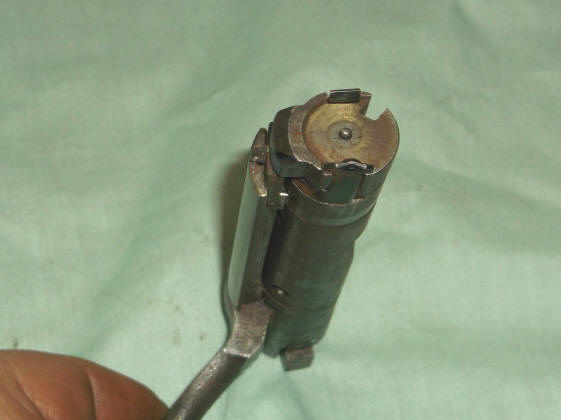

Also on the early model 325 and 325As, the bolt head was made slightly different at the outside lower front (RH) corner. It had a slight feed lip guide built into the bolt face side. As time went by, the extractor could loose tension, leaving a mismatch between the extractor and bolt lip causing feeding problems of the cartridge rim to feed up under the extractor hook.

The extractor was then redesigned (probably at the 325B) incorporating this lip into the bottom of the extractor. This then required the bolt face to be altered to accept the newly redesigned extractor. So IF your early 325 needs a new extractor not to worry, just purchase the only style being currently made and alter the bolt face as shown in the RH photo below by the red arrow.

If you look closely at the wide lip/hook area of the extractor in this RH photo below, you can see how much the upper wider part of the lip is recessed into the bolt face. This is the same amount of metal that WAS on the bottom. In cutting the lip off the bolt face, just use a Dremel tool with a part off stone and grind this lip down flush with the bolt face up to the slot for the extractor shank. If you don't cut this lip off, the new extractor will be riding on the outside of the old bolt lip, not allowing the extractor to move inward enough to pull the rim out of the chamber.

The LH photo below is of the original bolt head, showing the lip at (5 O'clock position) that needs to be removed.

Here you see the Old style bolt bolt head	Fitting a new extractor to old style bolt

In case you need to make new front trigger guard or barrel band screws, they are standard 1/4" X 28 TPI and can be made from 1/4" SAE/ National Fine bolts.

Magazine Changes Needed if Using New Magazines in Early Model 325, & 325B : The early guns, model 325 and 325 B, apparently had a shallower recess in the receiver where the top front and rear corners for the magazine to go into. When installing new later or current replacement magazines, (even though they are made on the factory tooling). These recesses act as a upper stop for the magazine. You may have to lightly file off the stop pads on the new magazines, which is easier than modifying the receiver. These are the tabs that are protruding both front and rear corners of the magazine body. Not much is needed to be removed, about .020 on the front with .010 on the rear has been found to be sufficient. Otherwise the magazine will not go all the way up into the receiver and it usually will get bound up by being twisted front to back and get bound against the front and rear guides.

Barrel Removal ; The barrel retainer nut is made with 12 radiused grooves around it's outside periphery. The factory probably used a special fitted wrench, but the average gunsmith can usually accomplish this removal by using four 1/4" round rods, placed so that they bear in the grooves whereby a large (18"-24") Crescent wrench can be used, with the jaws bearing on 2 of these rods on each side. Or if you have the facilities get a piece of say 3/4" thick aluminum about 2 1/2" wide and long enough for a handle, drill and then bore the hole out on one end to fit over the barrel nut (about 1.200"), mill a 1/4" groove on in a location on the inner hole, enough to slide the tool over the nut and allow a short 1/4" rod to engage one of the slots on the barrel. Late nuts were made without these groves but with one 1/4" round hole which needed a special spanner wrench for removal. This same tool could be also made to remove the new nuts, by drilling a hole in the other side to accommodate the late nuts.

If this fails you, a common 18" pipe wrench, strategically positioned so it's jaw marks will be partly hidden will work, and can be filed/bandsanded down, reblued and reassembled without the marks showing badly.

Between the barrel and the receiver is the recoil lug, made from 5/16" steel. This does not thread onto the barrel, but just slips snuggly over the barrel threads. On the rear center next to the bore of this lug will be a short 1/8" stud. This mates into a slot milled into the lower front of the receiver, which when the two are mated, acts as a location alignment for the lug. On the bottom center of this lug, is threaded for the 1/4" diameter front trigger guard/floor plate screw. The later versions deleted this alignment stud.

Barrel Install ; Here, I will be sticking my neck out, but a good home gunsmith can install a barrel on these without using headspace gauges.

First (for safety's sake) I recommend removing the firing pin from the bolt assembly.

Using a factory cartridge as a headspace gage on these models, SECOND make sure there is no debris in the chamber (CLEAN), next place the barrel nut on the barrel, screw it in most of the way. Slide the recoil lug on and be sure that the stud is aligned so it goes into the mating recess on the front of the receiver.

Hand screw the barrel on most of the way.

Chamber a round and hand tighten the barrel until you can just feel it touch the case. Be very careful here as the leverage you have on the bolt handle (if the round is too tight) is enough to set back the shoulder if working on a rimless case (222 or 223), the 30-30 being rimmed will not be as touchy.

With the barrel just touching the factory round, then back it off a few thousandths. OR, cut a piece of Scotch Tape so it just fits the case head (between the case and the front of the bolt face), then tighten until it comes up hand tight as mentioned above. This extra thickness in addition to the factory round will give you about .002 to .003” which should be within the GO–No Go tolerance.

Mark the barrel location in relationship to the receiver and tighten the nut, using the tools you used to remove the barrel. Once you have it tightened, check with another factory round. Readjust if necessary. I would not use a Lock –Tite locking liquid.

Shown here is the common castigated barrel retainer nut

Converting 222 to 223 ; Some owners of the 222 Remingtons are having problems locating ammo, therefore the question pops up "Can I Convert it to 223?" The answer is YES, but you have to realize the following.

The barrel twist for the 222 was designed with a 50 gr bullet in mind, so a 1x14 twist was used, but the 223 was designed with a 55 gr bullet so a 1x12 twist was used, but now, many factory loads have heavier bullets. HOWEVER the 5.56mm NATO military started life as a 55 gr bullet using a 1x12 twist and now commonly has a 62 gr bullet, (heavy for that caliber) using a 1x9 twist, which will never stabilize in the slower 1x14 twist of the 222 barrel. However the 1-14 twist may stabilize a 55 gr, bullet. It is better to over stabilize then under stabilize.

Pressure of the cartridge, this is the BIG bummer. The 222 has a factory operating pressure of 50,000 psi, while the 223 has a 55,000 psi range and the 5.56 military M16 has a 62,000 psi range. This will have a major play in the early 340 extractor system.

Extractors, this rifle has had two types over the years. The old type is a two fingered clip that snaps over the bolt head, which started in the 22 Hornet, and once the 222 came out they adapted it to the 222. As I found out with my 25-35 reloading, once you reach a certain pressure level then this clip type of extractor system will no longer work as the extractor arm will simply flex outward and leave the case in the chamber.

This is the reason Savage at a later date, about 1965, when the 225 Winchester cartridge came out, they designed the newer round plunger type extractor, and then also changed the 222 and the 223 rifles to this new round plunger type extractor since it is stronger and would grip the shell rim tighter, plus it was easier to manufacture. What we are seeing now is after 40 + years the round plunger type factory Beryllium extractor is getting brittle and chipping, it then needs to be replaced. Wisners make and offer a tool steel replacement and a new spring for that system.

If you have the old two fingered clip type extractor, IF you can find a NOS extractor pick one up as a spare.

Shooting a 223 cartridge, the pressure level in the 223 civilian cartridge is only 5,000 psi higher than a 222, so most likely no problem if the chamber is clean and free of any debris and rust. Again here the weak part is the old two fingered extractor system. HOWEVER shooting a 5.56 military cartridge in this rifle would a NO NO, first the higher pressure level and the rim shape is just slightly different than the 222/223 to cause issues. Many persons want to re chamber the Savage 340 into a 223 so they can shoot the 5.56 mil ammo since it is cheaper, you will have problems I can guarantee it with the old type extractor.

If by chance you have the newer round plunger type extractor in your rifle, then I would not hesitate to rechamber/ convert the rifle to 223 IF you used factory ammo, OR were a reloader and understood the situation, and used the lighter bullets, OR convert with a new barrel with a quicker twist than 1x14.

Magazines, is a simple swap out for the 223 magazine, everything is the same, the receiver and magazine guides.

Cost, for a gunsmith to remove the old barrel, re-chamber, and remark the barrel caliber, and reinstall and clock, and tighten the barrel nut, and a supply new magazine, would be about $ 185.

That still leaves you with a 1x14 twist for the 50 gr. bullets, or a max 55 gr. if not pushing the pressure.

As of 3-15-2021, Nurmich Gun Parts in NY, has NOS factory 223 barrels for this rifle, (HOWEVER they are 1-14 twist) at a cost of $ 70, they are new threaded and blued, unmarked with any stamping, and no sight cuts.

You can order one of those barrels, they are in the section under the Savage 840 Series E, part # 593830B.

A gunsmith should be able to remove your old barrel, install and clock, tighten the nut and mark the caliber, the Savage name and Model # on your new barrel, and supply a new magazine for $145, plus shipping

A Look at Gunsmithing Improvements ; Originally if you were to mount a scope on them it had to be a side mount. As time passes us by, scope side mounts are now becoming orphans at sporting goods dealers AND distributors alike, making them hard to find for the gun enthusiast who does not have connections. Many of the newer sporting goods stores hire younger employees have never even heard, much less seen one of these models, and have no clue as to scope mounting requirements.

   Below is a custom machined steel top scope mount base that I came up with which utilizes 3 mounting screws on the front receiver ring. Not an ideal situation with no rear mounting screws, but if made sturdy enough and close fitting to the radius of the receiver, then using the larger 8-40 scope mount screws, it functions well. It's less cumbersome than the side mount and this uses regular commonly available Weaver style low top rings.   And if you had the hankering to mount a large front objective scope, you can see that should not be a problem, by going to a higher set of rings if needed.

   The base in the photo below was made to fit the 30-30 action, but may be better to lengthen to the rear the front top ring attachment (as shown in the CAD drawing) as to possibly fit shorter scopes. 4 screw holes are made so it could also fit the 223 receiver, which the front receiver ring extends rear slightly farther than the 30-30. This way one base would fit both receivers by not utilizing the #3 hole for the 223 and not the 4th hole for the 30-30.   It is made to the length that the front overhangs the receiver and stops at the front of the recoil lug. It is also made thicker vertically than normal in order to provide a more rigid base because of the long rear overhang.

   Metal needs to be relieved on the bottom RH outside to allow for ejection. This angled milled out length can match the receiver clearance or the dimension used off the drawings which could be used on both.

New style top mount scope base

   I have found that if you first locate the base's center and front edge with an edge finder, locate the front hole .522" from the front, drill down in the base with a 1/4" (#3) center drill so that you have about .100 metal under the screw head to the bottom of the base is about right. Only drill this one hole here as the others will come after you have drilled and tapped the receiver, which will then act as a jig for the other holes, assuring perfect alignment.   You may have to drill the center of this hole out to accommodate the #8-40 screw.

   The mounting holes are drilled at the distance of the hole spacing on the gunsmith Forrester drill jig for standard scope mounts. Since this action does not have any real flat bottom to align it rotationally, you will need to do this pretty much by eye.   BUT once it is in the fixture DO NOT remove it as it will be very hard to re-align if you need to drill other holes on the same plane.

   I made these mounts long enough to have the front of the base even with the front of the barrel lug as seen in a photo below. This adds a bit which seems to be needed in gaining as much distance between the scope rings that may be needed on some scopes to position the eye properly.

   With the barreled action set up in the Forrester jig, using a #28 drill and pilot bushing, drill the front hole down to about the needed depth in the receiver. Using the #17 pilot bushing, tap this front hole in the receiver.

   Now you can mount the base on the receiver while it and the barrel are still in the jig. Be sure that this screw is short enough as to not bottom out making for a loose base. Locate, drill the other holes in the base with the #3 center drill. This center drill will just fit inside the jig over-arm bushing holes so alignment has no wobble. Leave the base on, drill the rest of the holes in the base. If you have a digital readout on your mill/drill record the locations of the holes. If no DRO is available, then remove the base, layout dye the top of the receiver, reinstall the base and scribe the hole locations.

   Now you can go back, drill and tap the rest of the holes to 8-40 in the receiver, clean up the base and things should line up. This pretty well insures that the base and receiver are drilled in unison. Otherwise if you come back in, try to pick up hole location, it is a lot harder to be centered sideways.

   Using this scope base, the rear part just clears the bolt guide rib mounted on top of the bolt. It can utilize standard low Weaver style rings giving sufficient bolt handle clearance. With this base and scope on the rifle, the rear section fits very close to the bolt guide rib, the average shooter would not know that there is no rear mounting screws.

   Depending on the tolerances of the machined parts, for clearance between this new style mount base and the bolt guide rib/gas shield, you may have to band-sand this rib down to ensure total clearance between it and the base. The early ribs were made of metal while the later ribs are plastic.   I have found that if this bolt guide needs to be lowered, band-sanding lengthwise works best. This can be done without removing the rib, just depress the latch, rotate the rib so you clear the bolt handle when doing this sanding. Manually rotate the bolt and rib while it is being held vertically so you take the top down even while duplicating the same original arc.

    This base has to be made high enough so that being able to also see the iron sights (with the rings removed) even through a center top groove, is about impossible.

   In the drawing, there is an extra cross slot to better facilitate usage by different scopes. Any of you enterprising gunsmiths/machinists, who would contemplate making these for resale, good luck, as it is labor intensive making one at a time, unless you could program it to be made on a CNC machine.

    The screw hole locations are designed to use the Forrester drill jig, and standard hole spacing for many bases.

CAD drawn custom made Savage 340 top mount base

   After I made these, I found a factory made Weaver base that seems to function quite well. This is one that is made for use on the Browning 22 Auto rifle. The old Weaver number was #60, with the newer version being #60A which has the same hole spacing and lower shape of the older #60, except that the top has been also grooved to accommodate the 3/8" dovetail type rail commonly used for 22RF scopes, WHILE STILL retaining the regular Weaver rifle type cross slots for the standard center-fire rifle rings.

    The hole spacing is different than my above custom base, and you CAN NOT extend it over the recoil lug because the front hole is so close to the front edge of the receiver. When using this, you will use the standard 6-48 threads (needed to match the existing base holes) and use the front 3 holes of the existing 4 (as shown in the photo below). You will also have to grind/mill about an inch off the underside behind the receiver ring to again allow for ejecting of cases. This base does not lay down on the rear, near the top of the bolt guide like my custom base does, but it is something that has also proved to function here, and at the same time still be readily available.

   Also the radius of this base where it mates the receiver is a lot less (because it was designed to fit the barrel of the Browning 22), therefore you will have a slight gap under the center when screwed down. This is really no problem if you suck it down tight. If you think you need a true mating surface, then paint the top of the receiver with AccuraGlas release agent and fill the void with JB Weld.

    In the top photo below, the white showing here is where material was removed at an angle for ejection clearance.

Weaver scope base #60, with a slight modification to fit the Savage 340 as a top mount base

   This base seems to fit quite well as for length and clearance once the metal shown above has been removed. For those of you who may find this photo below with something missing, YES the front magazine guide is not attached, as the photo was taken right after removing it from the Forster drill jig that required it to be removed for positioning.

   Since these rifles were never designed for top mounted scopes, the needed holes will have to be drilled and tapped in the top of the receiver. If you are not equipped for this, take it to a gunsmith, who in all probability will use a drilling jig. He should also be able to get you the scope base also. These Weaver #60A bases should be available online, OR at any well stock sporting goods/gun shop.

   Also on the receiver on some guns, I found some rather hard, it could be drilled with a Hi Speed #31 drill, but tapping was something else.   This involved using a CARBON (not Hi Speed ) tap, heating the cutting end red hot with a welding torch and then immediately quenching this hot end in Mercury to harden it. The reason to use a Carbon tap is that since it WILL NOW BE glass-hard and can break easily (IF YOU ARE NOT CAREFUL) inside a hole, however it is so hard that you can break it apart with a punch, or drive it through the hole, whereas if using a Hi Speed tap, this would NOT BE AN OPTION for removal as they are TOUGH and about the only way to remove a broken HS tap is to get friendly with your dentist, beg used carbide dental burrs, which you can then use a Dremel tool to worry this broken part in pieces, then be able to remove it.   These are old gunsmiths tricks that you will not see in any books or courses.

Here the Weaver top mount base #60 shown on the Savage 340

   My Project Guns : The wood and metal parts somewhat resembling a firearm, shown in the photo below, was acquired at a gun show in the fall of 2010 for the price of $50. It's previous home for a goodly number of years had the appearance of very likely occupying a favorite spot in an Alaskan Eskimo's fishing boat, (probably many times near the bottom, along with fish and bilge water). The seller said, yes it had came from an Alaska Eskimo, but had no knowledge other than that. I have seen a number of these that had the same previous experience and address where the exterior signatures are very evident.

   When I made this purchase, you could distinguish some rifling hiding between the heavy rust inside the barrel.   All the metal was well coated with a protective coating of DEEP crusted rust. The front guard screw and the barrel band screw had to be put in a milling machine, milling the heads off the screws in order to remove then save what was left of that wood that conservatively could be called a gunstock. This stock was totally devoid of any original finish, but had that special custom BLACK color associated with being NEAR salt water, leaky engine oil, fish slime and bilge water. The stock also had a large piece of wood missing from rearward of the bolt handle and was almost broken in two by the large cracks thru the front and rear of the receiver area. The safety was seized with it's detent plunger missing, the metal of the bolt handle that the safety secures when on safe was broken out. The ejector spring was so weak (and in backwards) that it was inoperable, the ejector pivot pin so seized in the receiver so bad that it required a Acetylene torch's heat to be able to break the rust loose so it could be removed.

   The firing pin spring was weak enough that some cartridges (after rebarreling) would misfire. A new heavy duty Wolff firing pin spring was purchased and installed, correcting that problem. The magazine was missing. The rear trigger guard screw was missing.   OH yes, from the size of the rusty hole in the muzzle, it had the appearance of being a 30-30 at one time. And about 1/2" of the muzzle was cut off at an angle, so near the front sight ramp that you could see saw marks on the ramp.

   These pieces of metal were cleaned up (somewhat), then the barrel was taken off. The barrel retainer nut was so rusted in place that it required pipe wrenches on the nut AND the barrel, then much effort along with the use of a 2# hammer was required to break the nut loose. This nut now used on the gun shows marks of this effort.   A used Mauser 98 25-06 Ackley Improved barrel was shortened enough to get a 25-35 chamber to clean up and still retain a 19 1/2" barrel.   An old Weaver K4 scope was installed and the gun shoots pretty decent using 100 gr. Sierra spitzer bullets seated deep enough so they will function thru the magazine.   The magazine follower in a new 30-30 magazine had to be modified enough to accommodate better feeding, (skinnier shoulder dia.) of this 25-35 round out of a factory 30-30 magazine. The magazine modification was rather simple. Just bent the follower up in the middle slightly to compensate for the change in the case's body taper. The highest point of the long bend protrudes about ½ the thickness of the follower above the magazine box.

   I tried to reload this round a little hotter than normal thinking that this bolt action rifle would be stronger than the lever action guns that this 25-35 caliber was designed for.   In developing this loading, it was done by slowly increasing powder charges of different powders, test firing and watching for excess pressure as indicated by the lifting of the bolt handle along with watching for the primers being flattened as compared to the regular loadings.   BUT as I approached even SLIGHTLY higher loadings than factory equivalent, the gun failed to extract. So the weak part of this gun in this instance, appears to be the small extractor hooks on the stamped out sheet metal extractor. I thought about trying to use the 225 Win action or bolt assembly. But the 30-30 rim is too large to fit into the 225 bolt, (which has been opened to it's MAX). And the extractor would not be able to ride over the rim even if you could make the rest work. I might try to TIG weld more of a lip and then re-heat treat it.

   The thought behind this modification was that it can now become a beat around gun to be carried on my Quad. The barrel being that short is ideally suited for the gun to be carried cross-ways in a gun rack in front of the handle bars.   With anything much longer, it is hard to maneuver around on tight trails in the woods that we ride in.

   This little gun is so ugly that most thieves would not steal it, and of so little value that if I loose or run over it, NO BIG DEAL. And with this ammo loaded using 100 gr. spitzer bullets and the bullets seated out to match factory 30-30 ammo it feeds reliably well, and it can take any animal (large or small) that I may encounter in the location that I live or happen to wonder into, if I do my part.   I do not think I will even try to improve the appearance of this little jewel, as it's character kind of grows on a person after a while. And if you remember, some people say that beauty lies in the eyes of the beholder.

   Improvements to Action Bedding ;    The original gun, used a front action screw that went into the locking lug and another into a barrel band unit part way up the barrel. The rear trigger guard screw was simply a wood screw that just held the trigger guard in place, but did nothing to support the rear of the action.   I had developed a better action bedding system a few years before when a 223 was made up. This system was also used on this 25-35 because of the broken stock.   By measuring, it was found that by adding metal to the rear of the stamped steel trigger housing, a hole could be drilled and tapped there, thereby allowing identical front/rear action/trigger guard screw to secure that end of the action like most all bolt action rifles for a more rigid setup. In doing it this way, the front barrel band attachment system was eliminated. The hole where the band screw was located was modified to accept a sling swivel.

   I wish that I had photographed this gun prior to any work being started, thus preserving the idea of a rust protective coating.

Here the modified action (rear screw) is shown with the new top mounts, scope, new rear guard screw, trigger guard & magazine



   As shown above, a section of 1/4" steel  7/16" X   1/2" was brazed onto the rear of the trigger housing. This can be done without disassembly of the trigger unit and still protect the temper of the sear spring because of the lesser heat required for that type of welding.   Also this trigger unit is riveted together therefore not made to be readily disassembled. This length of steel was selected to give a larger area for fiberglass bedding at this area as there is no other real stock bearing surface at the rear and yet not interfere with functioning of the trigger.

   This new screw is positioned so that by aligning the hole in the rear of the trigger guard with the welded metal, you can now drill and tap this steel for 1/4 X 28 (or 1/4" National Fine) threads. If you copy the head shape of the front guard screw (which is the same size threads) with the taper under the head, you can get your new screw to fit. This screw length can be the same as the front screw which has 1" under the head. However when I make any, I make them a tad bit longer (like 1 1/8") just in case. I just buy regular 1/4 NF hex head bolts then lathe turn the heads down to match the original front guard screw configuration. You also have to slightly alter the rear trigger guard hole to better accommodate this new screw head as compared to the older wood screw because the wood screw went into the wood at a slight angle as compared to the new metal screw going in straight.

   The hole in the forearm where the barrel band screw was attached, can be utilized for a front sling swivel by making a large metal plug that fills the inner stock hole and threaded internally for 10-32 threads. This size threads are the common size used on normal threaded forearm sling swivel screws. Even a wooden plug could be utilized here.

   This stock is warped to one side down the barrel channel, there is enough room on that side of the barrel that instead of the normal method of checking barrel clearance with a business card, you could now probably use a THICK leather belt on that side. There is no doubt the barrel is now free floated. The missing wood from behind the bolt handle was repaired by fitting a new large piece of walnut and epoxying it in place, then staining it DARK to somewhat match the existing finish. There was still a visible lengthwise crack thru the wood at the rear of the action and another from the middle of the magazine well up into the recoil lug.   These, plus the other crack at the grip area have since been fiber-glassed using Accuraglas and blowing it into the cracks with compressed air after cleaning the cracks with lacquer thinner then allowing it to dry out.

   The sling is simply a 1" black Nylon webbing that uses the loop thru type plastic retainers.

My beat around Quad gun

   The above gun also has a little brother that was made up a few years before in the form of another Savage 340 in 223 Remington caliber, that one sports an old Bushnell 3X9 Scope Chief BDC scope. This was the gun that the above style top mount scope base was originally designed and made for.   This 223 produces groups of less than 3/4" at 100 yards, so the new bedding system and scope mounting appears to be functioning quite well.

   Shown below, this 223 has a new handmade stock to a more of a lightweight simple sporter design. This rifle was assembled from pieces utilizing a new unfitted factory 223 barrel obtained from Gun Parts Corp. It started as just a receiver that I acquired from so far back in time that I can not recall where or when it followed me home, then later became matched to a 223 bolt assembly from a gun show. A barrel and trigger plate from Gun Parts Corp, a used scope and rings, then all that fitted to the wood, rounded it out.

The model 340 in 223 Remington set up for varmint hunting

   With the price of new guns today, if this rifle was revived commercially, I think it could be produced and sold at a very competitive price. And in a 6mm-223 cartridge it could still use the original 223 magazine, and would be a nice fit in this rifle as deer gun. Or if using 30-30 frame size, go to a 7 X 30 Waters and using the 30-30 magazine.

    One comment, IF YOU HAVE THOUGHTS OF CHANGING CALIBERS, STAY WITHIN THE DESIGN CONFIGURATIONS FOR EACH ACTION, by this I mean don't try to make a 30-30 into a 223. It has been done, I am sure, BUT in recent years, spare factory parts have diminished considerably, and the only parts supplier (Gun Parts Corp) is the only source being that they purchased all the remaining parts inventory from Savage after these guns became obsolete, and by now, much of this inventory has been depleted. Finding used parts may be an option, however if you find them on eBay, beware that many sellers using this media are not very knowledgeable as to exactly what they are selling.

   The 30-30 could be rebarreled and converted to 25-35, 7X30 Waters or 32 Win Special, or even POSSIBLY the 38-55.   For converting the 222 to 223, or 6mm-223, 7mm TCU, maybe even the 300 Blackout, anything that would function through existing magazines would be your restrictions. However any cartridge using a considerably heavier bullet than it was designed for may require a stronger magazine spring.
