also sold under the name, CHARLES DALY made in JAPAN
4 different style top lever
springs are used, however in the only old parts catalog we can find, it is
apparently for the type 2. They used the same part number for both the
type 1 and type 2, but differentiate only, Old Style or New Style and the
gauge. Then later when the 3rd and 4th type came along, if there is an
illustrated parts listing, no one has found it. The 4th type used coil
springs for the mainsprings, ejector hammers and the top lever springs.
These coil springs proved quite a bit more reliable.
FOR OUR PURPOSES, UNTIL WE FIND MORE INFORMATION, WE
WILL USE THEIR KNOWN PART NUMBERS ,
FOLLOWED BY THE FOLLOWED BY THE GAUGE
AND THEN THE TYPE
AS #2224-12-T1, #2224 -12-T2, #2224 -12-T3, #2224-20-T1, ETC.
To go to Chas Daly/
Miroku exploded drawings page
The drawings below are full size
TOP LEVER SPRING
TYPE 1 #2224-12-T1
- 306,367 12ga
50,000? - 216,522 12ga Field Grade
? - 540,083 12ga Superior Grade
? - 355,645 20ga Field Grade
? - 213,352 20ga Superior Grade
This top lever spring lays parallel to
& on top of the lower tang, above & in front of the trigger & is pinned into the
lower tang by a cross-pin.
we have not been able to find the
starting serial numbers are on the above models, and suspect they may have
actually been integrated with Miroku's existing numbers
The 20 ga. type 1 top lever spring is
basically the came but shorter OAL & not as tall, top bottom, #2224-20-T1
|TOP LEVER SPRING
TYPE 2 #2224-12-T2
NO Venture Grade used this style
216,523 - 371,702 12ga Field
540,084 - 543,618 12ga Superior Grade
NO 20ga used this style
top lever spring lays on the RH side of the receiver (inside the stock)
& the anchor hole uses the cross-pin hole in the receiver at the RH
|TOP LEVER SPRING
TYPE 3 #2224-12-T3
306,368 -to coil 12ga Venture Grade
543,619 -to coil 12ga Superior Grade (close to last
355,646 -to coil 20ga Field Grade
213,353 -to coil 20ga Superior Grade
28ga, & 410 Type 3 #2224-20-T3 is .075 shorter overall & narrower than 12
This top lever spring
lays on top of the locking block, in front of the top lever shaft, &
goes crosswise with the receiver. The short tail rests on the top
lever shaft, while the longer notched tail snaps behind the RH receiver
machining for the RH hammer.
|TOP LEVER SPRING
TYPE 4 #????
information we can come up with is that possibly the last 2 years of
production, 1975 & 1976, used coil type mainsprings, ejector
hammer springs & the top lever spring. We also have seen guns
that had broken top levers that were retrofitted with later top lever
springs, or even retrofitted with complete coil springs.
END IS FLAT
TYPE 1/2/ 3
RH, BOTTOM -- LONG END IS ROUNDED
All 20, 28, 410
Type 1/2/3 Mainsprings use the same spring& are .050 shorter than 12ga to the "Vee",
#2211-20 & #2212-20
The 12ga will not fit
#2217-O/S & #2217-N/S
313,188 & above 12ga Venture Grade
above 12ga Field Grade
556,093 & above 12ga Superior Grade
330,741 & above 20ga Venture Grade
361,093 & above 20ga Field Grade
522,322 & above 20ga Superior Grade
350,026 & above 12ga Single Barrel Trap 300
The our above parts are made off dimensions from original parts, as no factory
blueprints are available.
One thing to note is that when fitting a new
mainspring, is to check to see that there is clearance between the hammer pivot
boss and the mainspring behind the leg. We try to make our legs slightly
longer than originals to be sure they function, but there is a fine line here in that if the leg is
overly long it is about impossible to get the hammer into position under tension
to get the pivot screw in. It is possible to find a combination of the
hammer and new mainsprings that miss-match if the mainspring tab is slightly
short or the hammer notch is slightly deep. This will result in
misfiring, as the hammer can be slowed down right at the instant required for
primer penetration. If this is the case, a slight amount of metal can be
removed from this pinch point of the hammer.
Wisner's can not warrantee these mainsprings if you use
pliers and screwdrivers, butcher and break them by trying to install them in
a wrong position, then tell us we make defective parts.
Placement of RH hammer
Illustration of placement of LH hammer spring
There HAS to be clearance here
DALY / MIROKU O/U
Miroku of Japan made the Charles Daly name of O/U shotguns from 1963 to 1976.
Not a lot is really known about this firearm, however we know that a typhoon
almost destroyed the factory in 1971, because of this all the factory records
were lost. And most of those US importers, persons or gunsmiths
associated with those firearms who were involved, are now feeble minded
or deceased. The Charles Daly company got sold a couple of times, then went in limbo for some years
and the current Charles Daly, owned by KBI since 1996 has no parts or records for these models. On their website it says "Unfortunately there are not many parts available any longer in the US for these older Daly shotguns".
Their new line of guns imported from Spain uses the same models but with a roman numeral II after the grade.
One version of the Bluebook of Gun Values has some information under Miroku
and Charles Daly,
listed below as quoted. "Shotguns marked Miroku only without another
trademark listing represent that period of manufacture before Miroku began
manufacturing shotguns for other companies (i.e. Charles Daly, SKB, Browning,
and others)". To the best of our knowledge, this information is correct EXCEPT
for the SKB, as they have their own plant separate from Miroku. As stated in the Standard Catalog of
Firearms, 13th edition. "Miroku, B. C., is a Japanese company that not only markets under their own
name, but has made firearms for Charles Daly, Browning, Winchester and SKB
(Ithaca) and others". This is partly correct, but the Winchester 101, 96 O/U
and Weatherby Olympian O/U were made by Nikko, while SKB made
their own O/Us for Ithaca at one time.
Miroku did for a limited time sell a version of their 500 double shotgun to
Montgomery Wards, which was marketed under the Western Field name. Miroku also did make
USRA's Winchester limited run of 71, 86, 92, 95 rifles, but we are not talking
about rifles in this article.
If you doubt our word for the above O/Us, try to install Winchester 101 parts in
either the Charles Daly or the Ithaca O/U.
the Bluebook of Gun Values,
"Most guns marked Miroku only were made on a limited
basis and although somewhat rare, collector desirability to date has been
minimal. Since model notations were not specified in most instances (many
shotguns were made to test market demand), a model rundown is virtually
impossible. Values can be approx. ascertained by comparing a Miroku
shotgun of similar gauge, features, engraving/wood, and condition to an
equivalent Japanese Charles Daly model."
the sixties, C. Daly guns were manufactured by the firm of B. C. Miroku in
Tokyo, Japan." We have however seen some apparently early guns marked Kochi, Japan
which probably came about after the typhoon. " This Japanese gun manufacturing company was producing guns
for many companies, Browning being the biggest current customer. Miroku
guns are high quality with excellent fit and finish. Many of them are
highly engraved and are fine examples of the gunmakers art. Some Charles Daly
Miroku Guns are becoming collectable in some areas (smaller gauges with
open chokes). Their production ceased in 1976."
The most common Charles Daly guns encountered of this era will be the over-under that was made by Miroku before Browning entered the scene to became the Miroku's prime outlet.
However it is possible that after Charles Daly departed the scene and before a contract with Browning was signed, that Miroku sold guns under their own
name in the US, but still using same s/n range, as depicted by one gun we own. We know of one gun purchased at the Miroku plant that had Charles Daly's name on
We have also
found a Miroku 410 Skeet O/U with an importers name
of Aero Distributors Corp, Seattle Wash - Imported stamped on
the lower barrel under the forearm after the gun was blued. This would have had to have been after the 1968 gun control act
and before 1973 when Browning picked them up, as importers
names were required after 1968. It is our guess that this company picked
up some guns after Charles Daly stopped importing & before Browning got
rolling. Or that these Miroku marked guns were what was left over at this
change-over and this was a method of disposing of them.
The whole line of type 3 guns were basically similar to the
later Browning's Citori type I, (introduced in 1973) except they had "V" mainsprings.
If you read Midwest Gun Works, (who is closely associated with USRA/Browning), website, they make reference to a pre-Citori
type 1, which may be close to the last one imported by Charles Daly.
It has been recently discovered that FN and Miroku purchased 90% of Browning's
stock in 1977. Possibly that could have been a contributing factor
for Charles Daly Japanese shotguns being discontinued.
Miroku is still making O/U shotguns sold under their name in other countries of the world other than
North America, which Browning
apparently has tied up.
Model identification is very important when ordering parts for these old guns, especially the top lever springs for the Over/Under guns.
Apparently initially the guns may have sold under the Miroku name, then Chas Daly started importing them using their name.
However even for the Charles Daly guns, on the bottom of the receiver was
engraved, B.C. Miroku. These Chas Daly guns, (which you will see more commonly in relationship to the number of actual Miroku brand), there
appear to be 4 different MAIN grades within each gauge and the grade
apparently was assigned a different serial number block for each according to
the information we obtained. The MAIN grades were Hunter, or later the Venture, Field,
Superior and Diamond. A 1968 dealer price sheet lists the Venture grade, ("formerly the Hunter
grade") in 12 gauge only. So, it appears the earlier Hunter was renamed to
the Venture at about this time.
In the Superior grade there were then different trap/skeet sub-grades.
It appears for all the models, the grades were intended to be rollmarked on the barrels on the same line as the manufacturers name
Also in the mix somehow, the butt-stocks used a different pistol grip shape for the different grades, and this however may have changed over the years.
Engraving was different for each grade, but at this point we believe it also was
changed as time went on, but possibly the Superior grade staying somewhat the
same. Our 1968 catalog and price list shows the New Superior
engraving. As you read below it may become apparent why model identification is so important because of the internal changes.
Not much has been found as to model NUMBERS except some customers have said that
theirs have markings of model 700 and 800.
This appears to have been in the earlier guns for the Superior Trap/Skeet grades.
If this model identification was used on the later guns, it may only have been
on the order sheets & box ends.
identification will be found as small stars and dashes stamped on the LH side
of the rear of the barrels near the extractors, covered up by the receiver when
the barrels are closed. This system is similar to the current
Browning Citori firearms made by Miroku with the exception of the skeet choking.
SHOTGUN BARREL CHOKE MARKINGS
||IC (improved cylinder
you noticed that we frequently use the words "appears",
"possibly", "probably", etc. it is because we are not sure,
with this being our best guess as to what may have happened in that time period
some years ago.
DIFFERENT FRAME SIZES -
There were 3 different frame sizes. the 12ga, in the large
size, 20ga, 28ga, and 410 in medium size along with a limited number of the small
frame in 28ga. This small frame appears to have been made for
Charles Daly and only in
28ga, then apparently only to do a market sampling with less than 200 ever
To identify the different large and medium frame versions WE have divided them into types, distinguished by the type of top lever spring used.
The small frame is covered near the end of this article.
FOUR DIFFERENT TOP LEVER SPRINGS -
There were 4 different types of top lever springs within the grades as described
below for the large and medium frame sizes. Then a transition version has also been located.
It will be impossible to tell for sure which type top lever spring your gun has
until the buttstock is removed so you can visually identify the proper
spring. We can make an educated guess, but sometime in the past,
your gun possibly had a broken top lever and was retrofitted with the then
most current type, you will not know unless you actually look. And then know what you
are looking for. That is the reason for this article.
The one part that is often broken is the Vee type top lever spring, but over the production span of this gun,
we have found where the manufacturer changed it 3 times before it was finally made using a coil spring. The spare part list commonly in circulation is only for the 3rd version. The factory part numbers at this time did specify "Old or New Style", but used the same numbers.
Since we have no record of the earlier part numbers, for positive part identification, we have utilized the latest known part number and then added type 1, 2, or 3. This is based on what serial numbers we have
and a common sense machine shop approach as to ease of manufacturing for the different known springs, using the harder to make,
trying to verify serial numbers as the earliest. This information has taken years of working on them, to acquire, then assemble in some form of what we think may have happened.
will have to take the buttstock off to be certain as to the type of this spring
used on your specific gun.
We believe it was the
, that used a thin "Vee" type spring about 1.33" long, that had a
round peg protruding downward, and a half-moon notch cut in this peg for a retainer cross-pin. This spring lays on and is pinned into the lower tang in the trigger area, and ran longitudinal with the gun.
The locking block is machined out at the RH rear to accept the tails of this
spring. The picture below is of a type 1, 12ga. You can see the
trigger pivot pin in the lower tang to the right of the
arrow head. The other hole farther to the right of it is to retain
the trigger guard. The top lever retainer pin hole is in the lower tang again
and to the left of the
above the extended trigger.
lever spring peg uses a cross pin as a retainer. The 12 and 20 ga. have this
cross pin to the rear part of the peg.
1 shown above
shown below, was a much bulkier Vee spring,
& from a top view, looked somewhat like a heavy fish hook. It was about 1.92" long on the long side and had an approx. 1/8" hole in the front for a retainer pin that the cocking lever pivot pin went into as a anchor for this spring.
The other shorter side of this Vee, is about .98" long, & puts tension on the
rear side of the lower top lever shaft.
2 shown above
shown below, was a smaller "V" spring about 1.13" long that was positioned again just above the locking block, but when in place it ran crosswise in the gun, it had a slight notch on one tail of the "V" which snapped
behind part of the inner receiver wall, this prevented it from popping out, as the other tail was bearing on the
front of the lower top lever shaft.
In the picture below, you can see just the tails of it to the right and left
of the narrow, as the Vee bend is on the LH side of the receiver. This
spring seems to be the most common one.
TYPE 3 shown above
There also appears to be a Transition gun using the type 3 top lever spring but has coil springs for hammer
and ejector hammers.
shown below, top lever spring is a (3) piece coil type unit that uses a turned down plungered rod with a square front base that rides just above the RH side of the locking block against the rear inside of the receiver frame.
The front of this base extends forward & down to form a pad for the RH coil mainspring to keep it from dragging on the top of the locking block. On the rear of this rod is the coil spring .208 diameter, just over 1" long that runs lengthwise with the gun.
It utilizes a bar that is shaped somewhat like a Z, with a hole that goes over the rod
and behind the spring, that the front of the Z puts tension on the
lower bottom front of the top lever shaft.
picture below shows a Chas Daly Venture grade Type 4, 20 ga. where you can see
the coil spring above the locking plate. Notice the lesser degree of
engraving for this grade.
to say, all the 4 top levers have a different notch cut for a pressure pad of
their respective springs.
4 shown above
- The advertisement off their brochures mention that
their patented upside down hammer design gives equal power to the firing pin no
matter whether it is for the top or bottom barrel. This is referring to
competitors models that have both hammers pivoted at the bottom which are prone
to a bottom barrel misfire problem when the hammer springs have taken a set.
SPRINGS - These
are sometimes referred to as mainsprings, and the most encountered problem will be the
broken Vee type mainsprings. These springs are a "V" type with a protruding right angle tail on the short end, which puts pressure on the
hammer beyond the pivot point, the other end just bears against the frame.
These mainsprings are different, in that the hammer pressure pad side being the same but the other tail side has two different lengths.
If you were to keep a spare, the longer top spring #2211 (LH) can be shortened if needed.
Also the 20/28ga/410 are a slightly overall shortened version and you can't modify a 12ga to fit the 20ga.
The problem is when replacing the mainsprings, with the spring in position in the receiver, then the hammer on top of the spring
and the hammer has to compress this spring.
You then need to insert the pivot screw, while positioning the ejector operating rod so the screw goes in the hole of the rod.
For bottom barrel, or RH side, the top lever assembly will have to be removed also to be able to insert the new spring. The RH side hammer can usually be assembled by prying it in position with a medium screwdriver & then lock it in a somewhat position with a tapered punch. Once it is retained by the punch, you can get a better grip with the screwdriver & then remove the punch
and insert the screw.
The LH side is assembled using somewhat the same method. But you will probably need the help of an assistant as the pivot point is lower
and harder to hold with just one screwdriver. Occasionally I have seen that the hammer will not go into the receiver slot with a new mainspring in position. If this is the case you may need to de-horn the inside front corner of the sear pivot pin boss. This allows the hammer to snap into the slot.
Wisner's Inc was at one time producing a mainspring installation tool that greatly helps installing the LH side mainspring.
Even though the factory literature says otherwise, this gun is one situation where the hammers should be let down on a snap cap when the gun is put away, to take tension off the otherwise
heavily compressed Vee type mainspring.
There was a prominent trap shotgun gunsmith in California by the
name of Bill Nittler who about 1966 developed a coil mainspring conversion for
these guns. Therefore you may encounter some of Bill's converted guns that
do not match any of the serial number sequence. In 1972 he sold the
patent rights for this conversion to Miroku. So after 1972 the guns coming off the
factory's assembly line were coil type. Now this may have taken a
while to sell off any remaining guns that in inventory that had the Vee type, especially if they
were a slow seller for that choking or gauge.
these break, usually you simply have a misfiring gun. But we have seen on
rare on occasions where the person kept on using only one barrel. What may
happen is that if the spring breaks at the bend, (which is normal), the unbent
end (tail) can fall down on top of the hammer lever, (commonly called the
cocking lever by some), then get driven tightly enough into it that it becomes
VERY HARD to open the gun. If you continue to use it you will very likely
bend this cocking lever trying to open the firearm. This part is
fitted to the receiver and engraved to match the gun, it therefore is not an item
that can be easily replaced especially since limited spare parts are available.
Even if a new or used part could be acquired, it would be hard to make the gun
look original. Your only hope is that you did not ruin it beyond what an
expert gunsmith could repair.
FIRING PINS -
The firing pins
are the same for both the top and bottom barrels. In the time frame of
manufacturing, the design was changed, but only to add a coil type return spring, and it appears the two styles FP will interchange if corresponding spring is also changed. If the older non coil spring type become dirty inside, the firing pins can stick
forward and the action will be hard to open.
identify which type you have, with the action off the barrels, using a pencil or
similar object, push the tip back into the face of the receiver, it should
return to original position if spring type.
EJECTOR SPRINGS -
These springs for the first 3 types are "Vee" type, and made in RH or LH versions. They are made basically the same style as the hammer springs, but the difference is they have a
small stud on the rear that goes into a hole in the forearm iron for retention. This stud is made on either the RH or LH side depending on the application. The LH spring activates the top ejector.

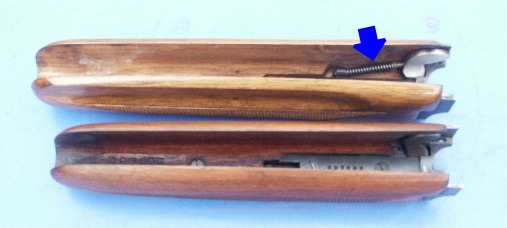

picture illustration of the forearm below, the type 4 is on top, you can see the coil
spring for the RH side. You will also notice that this forearm has the
later finger grooves on the top edge of the wood. The bottom illustration is for the type 1 thru
type 3 and the Vee springs are buried under the forearm iron and in the
wood. On the right are the forearm iron assemblies removed from the wood.
Hammer Lever Receiving Rod, late style ------------->
Lever Receiving Rod early, round (type 1)
above picture, the Mono Blocks and rods are different. The frames also
have different cut outs to match the corresponding rods. The assumption is
that the type 1 top lever spring probably coincided with the early round
This frame and internal configuration of the
parts are totally different than the other
larger sizes. The width of the frame is 1.330 s compared to the medium, or
the 20 ga frame which is 1.450 wide. Both the hammers pivot from the bottom.
The distance on the standing breech between the centers of the firing pins is
.772. The firing pins are 2 piece, with the front being spring
loaded with the rear being just a striker against the front FP. The firing pin strikers are pinned into the frame crosswise
and separately. The
mainsprings lay horizontal on top of the lower tang, where they slide horizontally
as the hammer is cocked. These Vee type mainsprings are made in a RH
and a LH version with a tab protruding down on the inside front tail that
rides in a slot in the lower tang that retains the spring from popping outward.
The hammers appear to not be rebounding type, the
cocking cam is timed close enough that just as the barrels start to open the
hammers are retracted.
The top lever spring is a coil type very similar to the Browning
Superposed. The only thing that appears to interchange with it's larger frame
brothers is the firing pin bushings. The ejector trip rods lay
horizontal in the lower part of the frame. Barrels are 26"
name Charles Daly 28ga, 2 3/4" is engraved on the top LH side of the top
chamber. This makes sense in that if only a limited number of guns
were to be built, there was no sense of having a roll made. Also the
B.C. Miroku on the bottom of the frame is also engraved in. The
serial number has a prefix of S with the numbers on the sample gun we have seen
is 2300XX, indicating that
there may be some possible serial number coding for all of the models, with this
particular model having it's own range.
COUNT DOWN - After Chas Daly discontinued these Miroku guns in 1976 or thereabouts, Browning
stepped in, had Miroku make guns for them. This basically the same O/U was then known as the
Browning Citori model. During manufacturing under Browning's name, the types were also changed as things got improved.
The type 4 Chas Daly gun appears to be basically is a Browning Citori pre-type I, which had coil
mainsprings and top lever spring. However parts for the Citori type I,
are now obsolete, but Western Gun Parts in Edmonton Canada purchased the last remaining parts from Browning a few years ago, does have some parts left in inventory.
Bear in mind however they may not be an exact interchange with the
all the Charles Daly guns.
LISTED BELOW IS THE INFORMATION (right/wrong ?)
THAT WE HAVE. It is suspected that the serial
number information we have is incomplete, in that
using this coding there could be duplicate serial numbers between the grades.
The starting numbers could most likely not have started at zero
or maybe even anywhere close to that, (our guess would be closer to 100,000) as it seems questionable that the Superior grade guns were made in a larger quantity than the Field,
and Hunter grades combined. There could have been blocks of numbers assigned with gaps in the mix. Or the first 1 or 2 numbers in the serial number could have a code to identify a
gauge/grade, or assembly line.
Or, these Charles Daly guns came into the Miroku system at Miroku's existing
serial numbers were then co-mingled then serial numbered with the Miroku
worldwide production. This last thought makes more sense to us in that we have never seen or heard of
any Charles Daly gun much lower than the 6 digit 120,000 serial number range.
With the above last thought in mind, then it would be about impossible to narrow
down year of production unless directly from Miroku, if that is possible. This would possibly
explain why, based on the
quantities of each spring we sell
each year why the serial numbers above don't seem to be possible to obtain if
just for the Charles Day guns. Also we do not know what serial numbers the type 3 ended at, which would then tell us the serial numbers when the type 4 coil springs were introduced.
BELOW : These pictures of a gun has no manufacturers name on
it but is obviously of Miroku manufacture as many parts interchange as the sears
has the "SKEET GUN" hand stamped on the RH top barrel, has Model OS
engraved on both sides of the receiver. The serial number
60,3XX is stamped on the top flat of the RH side of the receiver which is covered up by the monoblock part of the barrels when closed.
On the bottom of the receiver in the position where normally is engraved
"BC Miroku", is the word JAPAN, and under that is a crown type shield with a standing bear inside.
It has Japan stamped on about all the major parts, has some proof marks that are
not familiar. The firing pins are retained by a long vertical screw coming in
from the bottom of the frame. There are no firing pin bushings as the FPs
come in from the rear.
The sear pivot block is screwed onto the underside of the top tang.
It has a 3/16" square hole on the RH side running at an angle that is in alignment with the RH edge of the top lever that apparently was a
remnant of an earlier method of placing tension on the top lever using some spring loaded plunger system.
It uses the same basic top lever spring system as our type 1, except the peg is smaller (.094) & the overall length is shorter (1.015")
& which we now will call the (pre type 1). The locking block retracting stud in the top lever uses a .164" square hole thru the top lever.
pivot base is a separate unit that is screwed onto the upper tang from the
underside. There is a square slot with a cross pin type hole in the top LH
side of the sear pivot base that is not used, indicating that it may have been
left over from a previous version not utilized on this "pre type 1".
lever coupling pin is different in that it goes into a square hole in the bottom
of the lever shaft.
Barrels are 26 1/2" long
which have not been
cut. It also
has the early round receiving rod in the monoblock.
corresponded with a gentleman who has a gun similar but marked "OT".
METHOD OF IDENTIFICATION :
The shape of the buttstocks may generally the easiest way to tell the
earlier grade other than the actual grade engraved on the barrel. It
appears from the brochures we have obtained, that Field and Venture grade guns had a rounded pistol
grip up until at least 1968. Some Venture grades had a more flared pistol grip similar to the later Brownings.
But it is suspected this had more to do with the vintage of the gun than the
actual grade. Trap and skeet guns could have been available in either a
standard or a Monte-Marlo comb.
It appears that the Hunter/Venture grade was a lower grade than the Field from
the pricing we find. This is rather uncommon, as most Field grade guns for other manufacturers are the lowest price.
We find in 1967, they are advertising a NEW Hunter grade, with minimal engraving for $250.
The information off a 1968 sales sheet, lists the Venture grade, (formerly
Hunter). If this is so, then the Hunter grade only lasted one year, at
least until we gather additional information.
add mentions their newest innovation for the trap and skeet guns, calling
it the "Selexor", which is a patented selector system that gives you
flexibility for manual or automatic shell ejection. This
optional selective ejection system was available on
some Superior grade Trap guns.
There was a small serrated rectangular
button on both sides of the outside bottom rear
of the receiver that can deactivate the ejectors.
The RH button when moved up, pushes outward on the ejector trip rod, disengaging
it from the trip stud on the hammer. This allows the shooter
a manual selector that disengages the ejector which used primarily for trap shooters
and only available on guns appropriate to this sport.
There is a hole drilled on the bottom of each side of
the receiver, up into the receiver at the internal edge of the recess for the
butt stock. Here a round shaft extends upward to near the ejector trip rod.
A selector button, using a small rectangular peg that goes into the shaft, held in place by a 4mm screw.
Also there is a spring detent that rides in a hole in the lower part of the receiver that puts tension on a plunger that detents into 2 notches in the shaft.
The upper end of the shaft has a thinned tip that when pushed up, it pushes the ejector trip out,
and away from the hammer activator stud, thereby disabling the ejector for that side of the gun.
We have a CAD drawing of the RH unit, from s/n 59280X.
The 20, 28 ga. and 410 were made on a smaller frame size than the 12ga.
appears that early on, a
small frame size was used on about 500 28ga guns before the 28ga was upsized to
use the 20ga frame. This change was in the height of the difference between the
firing pins which appears to only be applicable to the 28ga guns.
have seen some older magazine articles written on these guns & from what
information we have compiled, there are a few discrepancies in at least one
CHARLES DALY O/U TOP LEVER SERIAL NUMBERS
AS SUPPLIED TO US
0?- 306366 12ga Venture
0?- 216522 12ga Field
0?- 540083 12ga Superior
0?- 355645 20ga Field
0?- 213352 20ga Superior
no Ventures used thus style
216523 - 371702 12ga Field
540084 - 543618 12ga Superior
no 20ga used this style
" " "
306367 to coil 12ga Venture
371703 to coil 12ga Field
543619 to coil 12ga Superior
355646 to coil 20ga Field
213353 to coil 20ga Superior
in this numbering system do the Skeet guns fit, possibly in with the Superior
Trap guns ??
There is one known transition gun (type 3 1/2) with coil MS and ejector hammer springs but the type 3 top lever spring.
Information has been relayed by an experienced shotgun gunsmith somewhat associated with this model who scavenged information from the old importer's (Sloans)
gunsmith, that the last 2 years of production, the guns had coil springs. And
that Sloan's/Charles Daly at one time offered coil spring upgrades to the older
guns. We have found an owner that has a letter from Sloan's with an offer
to convert his type 3 to coil springs that is dated 7-1-76. This was AFTER
Charles Daly was discontinued, Sloans still may have had connections with Miroku
for parts, they were doing these conversions as a gunsmithing service, it
would not have been officially connected to the Outdoor Sports Headquarters
Charles Daly company.
Some owners have the dates recorded when they purchased their guns, but depending on inventory on hand at the distributor
and dealer level, this dating may not have been close to being accurate
if for a slow moving version.
Some known serial numbers have no prefix, then others with letter prefix include "S" & "M".
One gun does not have the serial number prefix on the upper tang, but
definitely has it in the forearm. We have never seen a Charles Daly gun
with an M serial number prefix. It is possible the prefix "M" was for Miroku
marked guns (not sold by Charles Daly) as we do have one sample of this, but one
gun is not enough to draw good conclusions. It is also highly possible
that the serial numbers are mixed between both Charles Daly and Miroku, as we are sure the Miroku factory was producing guns for the rest of the world
We have heard of (2) 12 ga guns that apparently were older types 1 or 2 that are known to have had the top levers
broken. These levers were replaced with the newer type and the guns retrofitted to the type 3 style
top lever spring.
Trap O/U guns had the auto safety engage bar removed. This was a bar that was screwed onto the LH side of the locking block just rearward of the top lever coupling pin, extends up
and over the LH sear, into the safety slot in the receiver which automatically resets the safety when the gun is opened.
Single barrel trap guns were probably Superior grades with the bottom barrel removed from the forearm forward
and the rear section not bored out.
Some of these were apparently were labeled model 300.
Some Field grade guns apparently had no grade markings to identify that.
Even one with Superior grade engraving has been observed with no grade on the
have encountered 4 customers guns that have "Commander" engraved on the barrel
as if that is the model. One of these had Field type engraving with the
older round Field type pistol grip stock, that also on the bottom of the frame
had BC Miroku in the normal place, then in an arc below, Model 700.
While another was marked model 800.
One 20ga O/U has been encountered marked Anshutz-Miroku s/n 362,60X. But the Anshutz
name was machine engraved on the LH side of the top barrel AFTER the gun was buffed
It appears that Anschutz probably was the importer of this gun into Europe.
This gun was a type 3.
have one customer who purchased 4 Skeet guns AT the Miroku factory in Japan in
1967 or 68, one of each gauge/caliber. All were Mirokus except the 410
which was marked Chas Daly. He has sold the 2 smaller gauges but the 12ga
is #204,9XX & the 20ga is #217,5XX
We have another owner who has a Chas Daly 12ga Venture grade Trap gun in the
type 4. All the literature we have found indicates the trap guns were in Superior
?? But in that this is a late gun, maybe they were assembled from remaining parts.
Initially the Venture grade 20ga S/N 334,40X on the following list was thought to have been a type 3, retrofitted
to coil springs. However it appears not, in that the front of the slots for the
hammers are drilled from the bottom, instead of milled from the rear like the earlier
types. The insert for the RH hammer spring pad could not have been a
retrofit by how it is machined. This gun has a more rounded bottom front receiver than the later guns.
Most guns were fitted with a (2) holed firing pin bushing. However one type 4
12ga we have inspected has 3 holes. This was thought to have possibly been at the
change for the spring loaded firing pin, however we find more than one gun with
spring loaded firing pins with only the 2 holed bushing. Maybe these
bushings were a later, or replacement type if the firing pins were replaced?
As a final note, dating the manufacture date is about impossible
unless you know for sure the model AND gauge of the gun and then it would be a
(SWAG) Scientific Wild Ass Guess. THEREFORE please do not send me an
e-mail wanting dating information on s/n 567,572. All the information we
have is listed above, some from factory notes, others from odds and ends of
information and compiled here over the years of working on them.
website is no longer associated in manufacturing parts for these guns
Here is a
link to a business that does have some parts
(Robert Storms) Lake Havasu City, AZ 928-854-8209
He also advertises on
Copyright © 2004 - 2016
LeeRoy Wisner All Rights Reserved
Back to Ramblings
Originated 05-17-04 Last updated 12-18-2016
Contact the author
